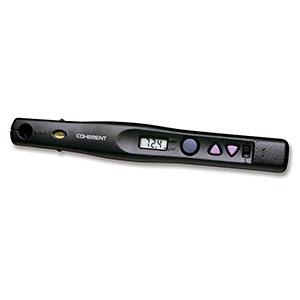

LaserCheck Power Meter

LaserCheck™ is an inexpensive, hand-held laser power meter that displays measurements on a built-in LCD screen. It is a small, lightweight, self-contained package that can easily be stored in a pocket or tool kit.

LaserCheck is micro-processor controlled with wavelength correction, auto-ranging (µW or mW displayed), power overload warning and automatic shutoff. At higher powers the silicon sensor is protected from saturation with a built-in optical attenuator.

LaserCheck is supplied ready to use, complete with battery, integral pocket clip, storage case, CE certification and user instruction sheet.

To initiate a measurement cycle, press the Sample/Hold button to turn the LaserCheck on, center the beam on the sensor for >2 seconds and release the button to record a measurement of the power. Repeat the cycle to make another measurement or the LaserCheck will switch off automatically after 10 seconds.

• Integrated sensor
• Auto-ranging with peak sample-and-hold
• Power measurement from 0.5 µW-1W
• ±5% calibrated accuracy from 400-1064 nm

Please observe optical damage threshold specifications for this product. Warranty does not include damage caused by over exposure to high energy laser beams. Please contact sales@coherent.com.au if you require technical advice on appropriate use of this product or if you require further information.
